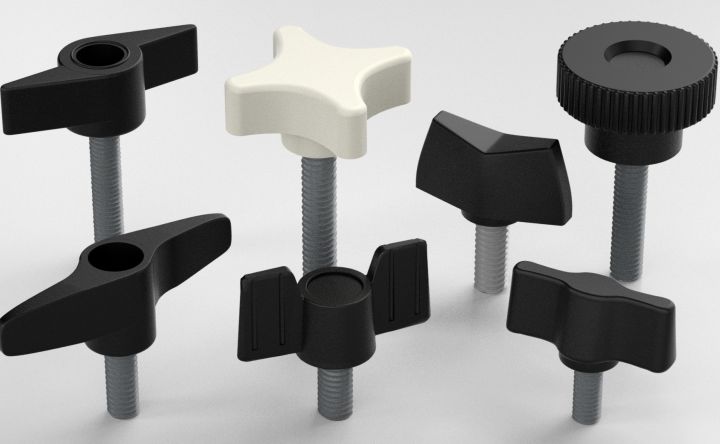

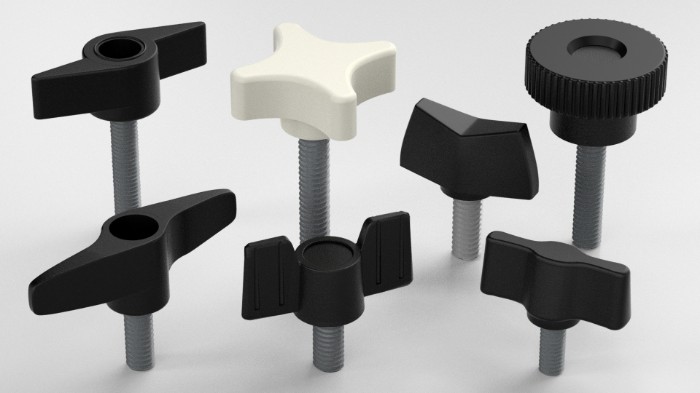

Plastomet Thumb Screws – MaleMetal Screws with Plastic Overmoulding
Standards, types, sizes and plastics at a glance
Use the table below to get an initial overview of the Bülte range of plastic screws. If the screw you are looking for is not available in your required size, please contact us! We are also happy to supply screws made from other plastics on request.
| Types and standards | Sizes | Material | Other features / variants | Colours |
|---|---|---|---|---|

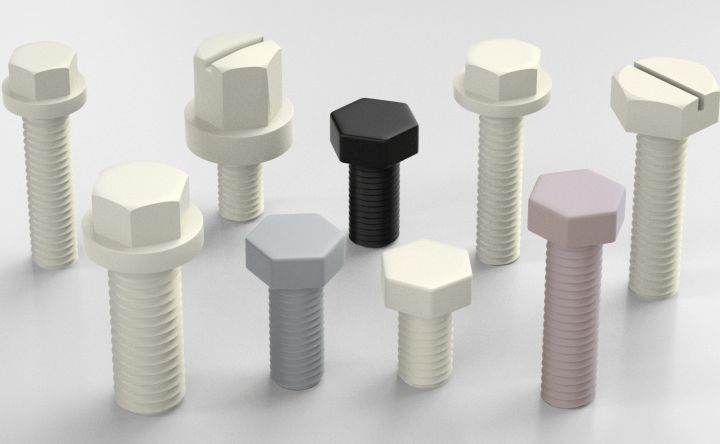

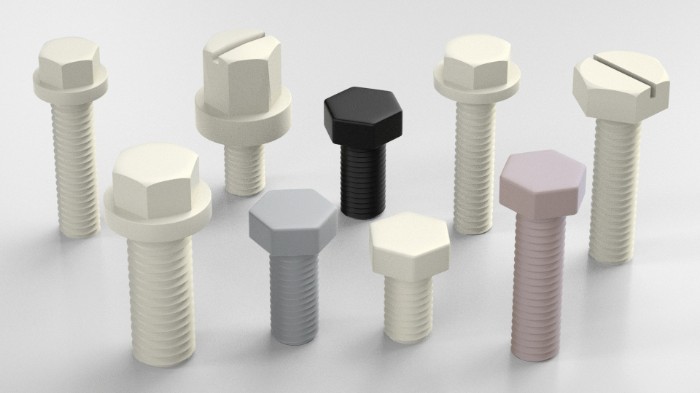

| Hex head screws ~ DIN 933 / ISO 4017 | M2—M24 | Nylon, PA-GF, PC, PP, rigid PVC, PTFE, PEEK (others on request) | fully threaded, fine thread; slotted | natural, white, black, grey, transparent |
| Hex head screws ~ DIN 931 | M3—M12 | Nylon, PP (others on request) | partially threaded | natural, black |
| Washer-faced hex head screws | M4—M12 | Nylon (others on request) | fully threaded, slotted or 6-lobe drive | natural |
| Self-locking hex head screws Plastilockscrew® | M5—M12 | Nylon (others on request) | screw similar to DIN 933 / ISO 4017 with conical tip, thread locking | natural |

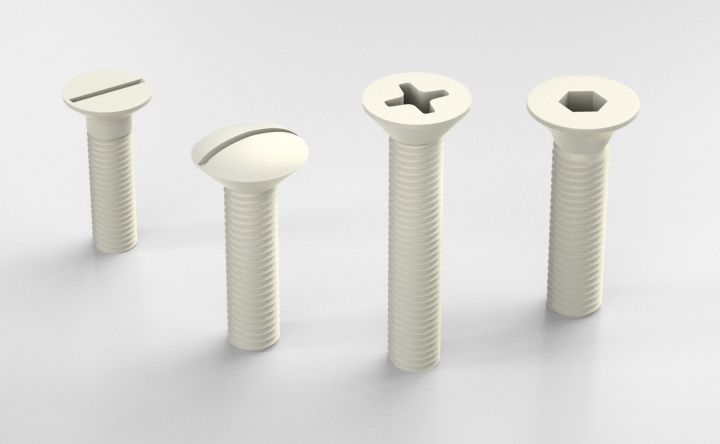

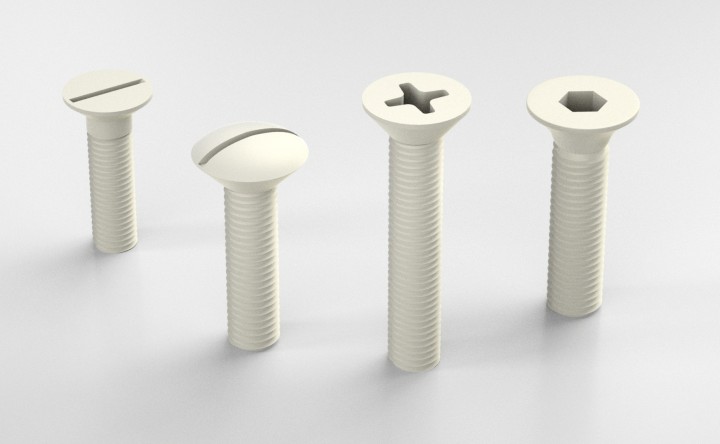

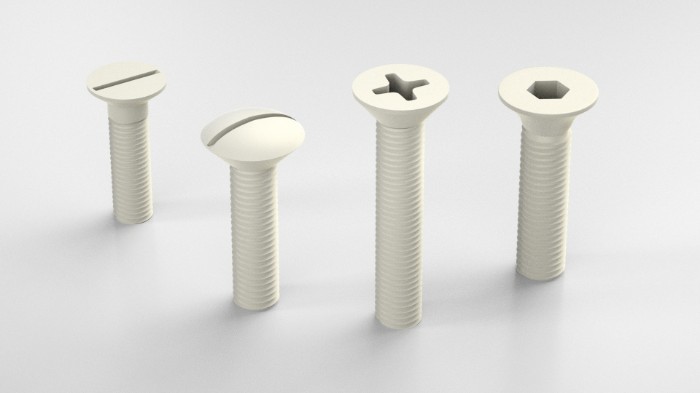

| Countersunk screws ~ DIN 963 / ISO 2009, DIN 964, DIN 965 and DIN 7991 | M3—M12 | Nylon (others on request) | slotted, Phillips cross recess or hex socket; raised countersunk head | natural |

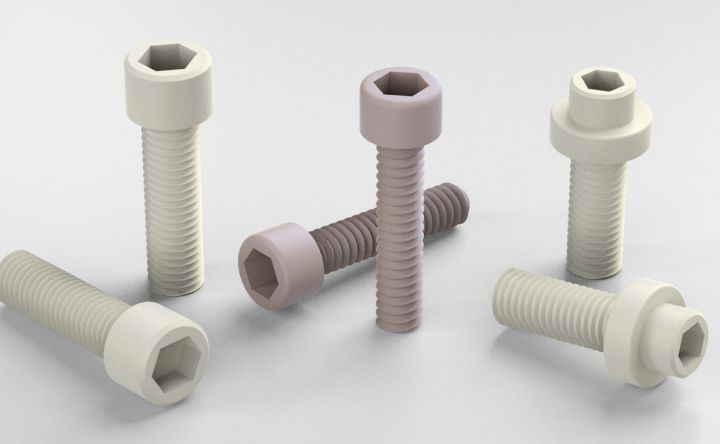

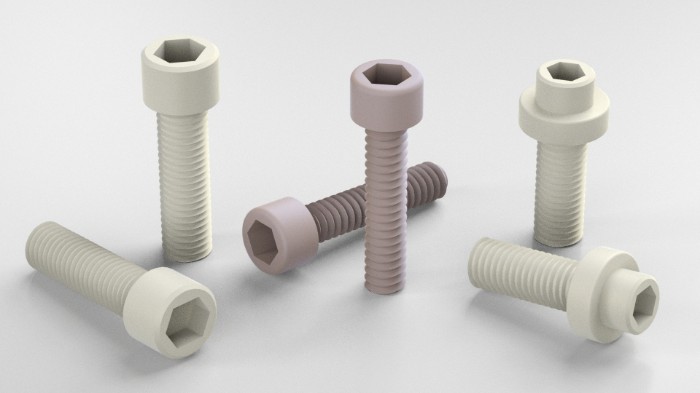

| Hex socket head screws ~ DIN 912 / ISO 4762 with hex socket | M3—M20 | Nylon, PEEK (others on request) | also available as a washer-faced screw | natural |

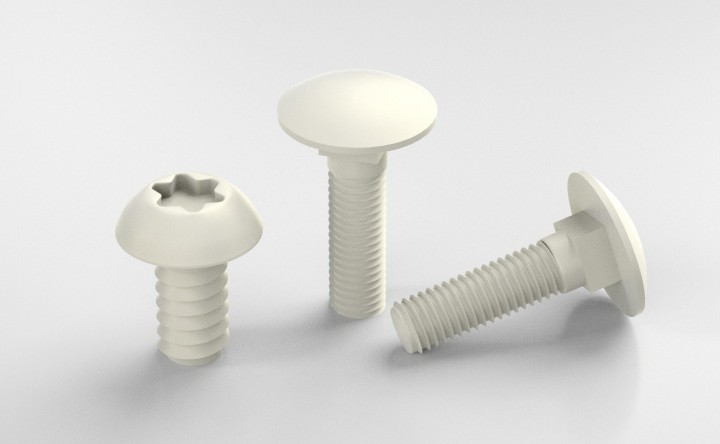

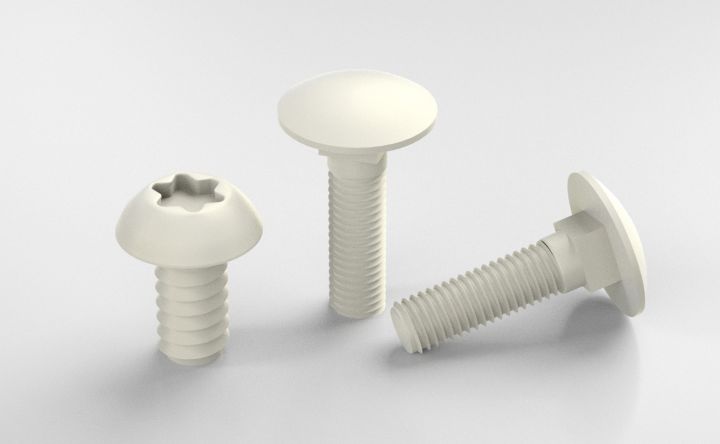

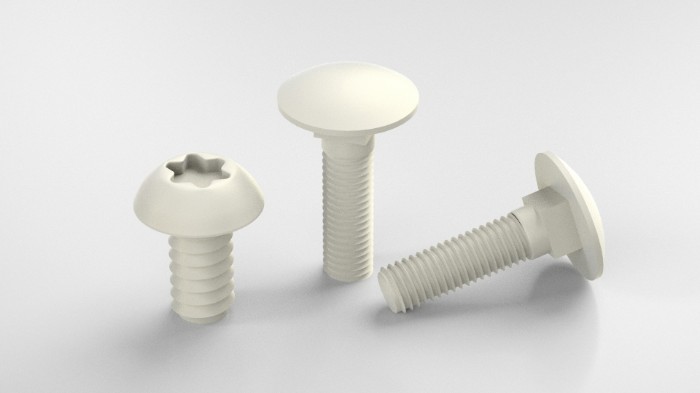

| Pan head screws ~ DIN 964 with countersunk head or ISO 7380 | M3—M12 | Nylon (others on request) | slotted or 6-lobe drive | natural |
| Carriage bolts ~ DIN 603 | M5—M12 | Nylon (others on request) | round head bolt with square neck | natural |
| Screws with coin slot | M4—M12 | Nylon (others on request) | large flat head | natural |

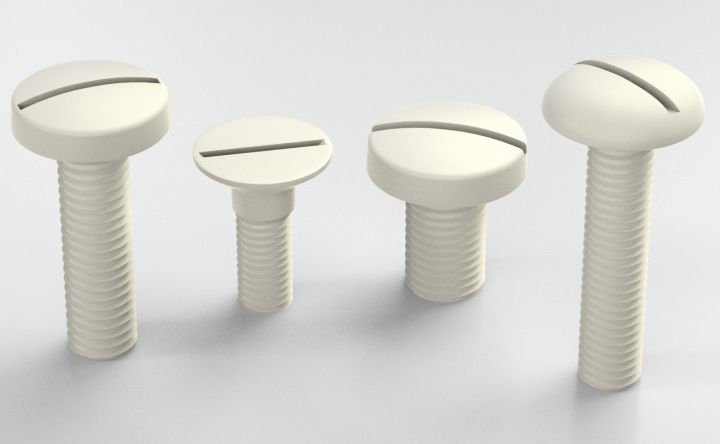

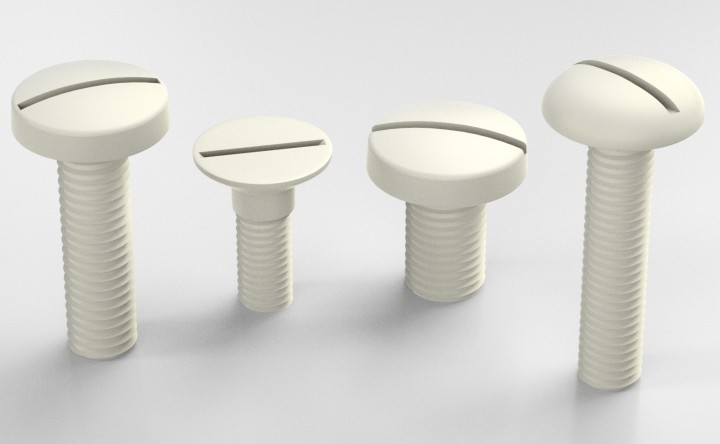

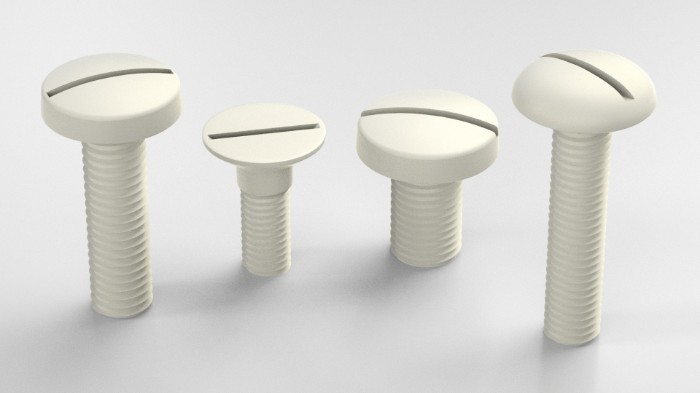

| Flat head screws | M4—M12 | Nylon (others on request) | cylindrical with slot or round head with Phillips recess (NFE 25-129) | natural |
Plastic screws from M2 to M24
Our plastic screws are made from various types of plastic, such as e.g. nylon (polyamide), PVDF, PTFE, hard PVC, PP, PE, POM, PAFV, etc. They are mostly used in situations where corrosion resistance, insulation or low weight are required. The plastic screws are versatile and are used in areas such as electronics, construction and the automotive industry. Thanks to their easy handling and mouldability, plastic screws offer an alternative solution to conventional metal screws.
Plastic screws with fine thread
The fine-thread screws listed below are part of the Bülte standard range. We are happy to supply fine-thread screws made from other plastics or in other dimensions on request.
| Item | Dimensions | Material | Drive | Item number |
|---|---|---|---|---|

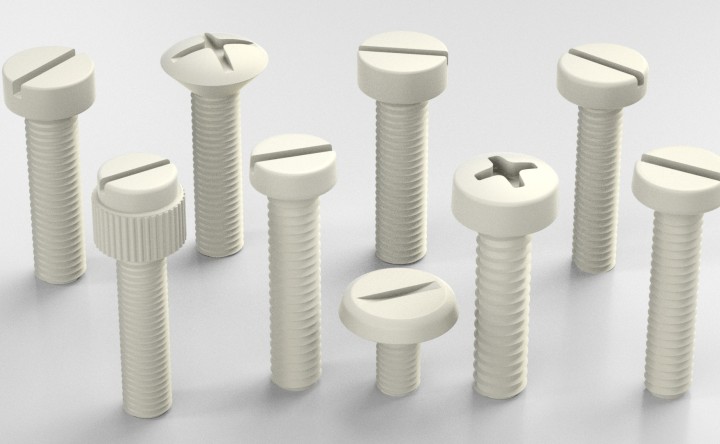

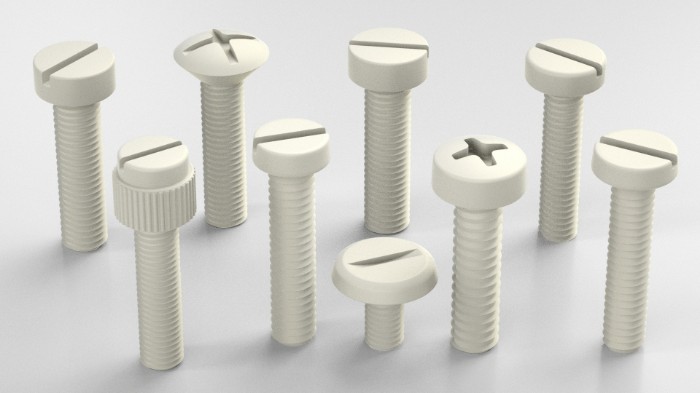

| Cheese head screws ~ DIN 84, fine thread | M6 x 0.75 x 8 | Nylon, natural | Slot | 8460.758AFG |
| Cheese head screws ~ DIN 84, fine thread | M8 x 1 x 8 | Nylon, natural | Slot | 84818AFG |
| Cheese head screws ~ DIN 84, fine thread | M10 x 1 x 10 | Nylon, natural | Slot | 8410110AFG |
| Cheese head screws ~ DIN 84, fine thread | M12 x 1 x 10 | Nylon, natural | Slot | 8412110AFG |
| Cheese head screws ~ DIN 84, fine thread | M12 x 1.5 x 10 | Nylon, natural | Slot | 84121.510AFG |
| Pan head screws ~ DIN 85, fine thread | M6 x 0.75 x 8 | Nylon, natural | Slot | 91360.758AFG |
| Pan head screws ~ DIN 85, fine thread | M8 x 1 x 8 | Nylon, natural | Slot | 913818AFG |
| Pan head screws ~ DIN 85, fine thread | M10 x 1 x 10 | Nylon, natural | Slot | 91310110AFG |
| Pan head screws ~ DIN 85, fine thread | M12 x 1 x 10 | Nylon, natural | Slot | 91312110AFG |
| Pan head screws ~ DIN 85, fine thread | M12 x 1.5 x 10 | Nylon, natural | Slot | 913121.510AFG |
| Hex head screws ~ DIN 933, fine thread | M6 x 0.75 x 8 | Nylon, natural | Hexagon head | 93360.758AFG |
| Hex head screws ~ DIN 933, fine thread | M8 x 1 x 8 | Nylon, natural | Hexagon head | 933818AFG |
| Hex head screws ~ DIN 933, fine thread | M10 x 1 x 10 - S16 | Nylon, natural | Hexagon head | 93310110AFGSW16 |
| Hex head screws ~ DIN 933, fine thread | M10 x 1 x 10 - S17 | Nylon, natural | Hexagon head | 93310110AFGSW17 |
| Hex head screws ~ DIN 933, fine thread | M12 x 1 x 10 - S18 | Nylon, natural | Hexagon head | 93312110AFGSW18 |
| Hex head screws ~ DIN 933, fine thread | M12 x 1 x 10 - S19 | Nylon, natural | Hexagon head | 93312110AFGSW19 |
Drive options for plastic screws
The drive types for plastic screws are diverse and mirror the classic variations of metal screws. Among the most common drives found in the Bülte range are:
- Slotted: A simple drive where a slot is located in the screw head, operated with a flathead screwdriver.
- Phillips: This variant offers better guidance for the screwdriver and reduces the risk of slipping.
- Allen: Very precise and ideal for applications where space for the drive is limited.
- Torx: 6-lobe plastic screws with a star-shaped six-point drive enable optimal torque transfer and minimize wear.
- Pozidriv: This is an evolution of the cross slot drive, allowing for even greater torque transfer.
In the Bülte range, you will find not only protective caps for hex screws or decorative caps for Phillips screws, but also suitable cover caps for Pozidriv screws.
Versatile applications: plastic screws
Plastic screws are available in many different materials and have established themselves as extremely versatile fastening elements, finding numerous applications across various industries. Their unique properties make them a preferred choice in many situations. For the respective screws, Bülte also offers matching nuts, washers and cover caps.
We are happy to advise you regarding special solutions based on drawings by phone at +49 (0)2591 9194-0 or via email at info@bulte.de.
Additional suitable items from the Bülte range
If you require a customised solution based on a drawing, please don't hesitate to contact us.
View plastic screwsFAQ Plastic Screws
What do the designations S16, S17, S18, etc. mean for screws?
"S" refers to the width across flats of hexagon screws. S19 therefore means that the screw has a hexagon head that is tightened with a 19 mm wrench.
Where can plastic screws with fine thread be purchased?
One supplier of plastic screws with fine thread is Bülte. The range includes hexagon screws DIN 933 with fine thread as well as cylindrical screws DIN 84 and flat head screws DIN 85. Here you will find an overview of the standard available plastic screws with fine thread. Other sizes and screw types are available on request.
