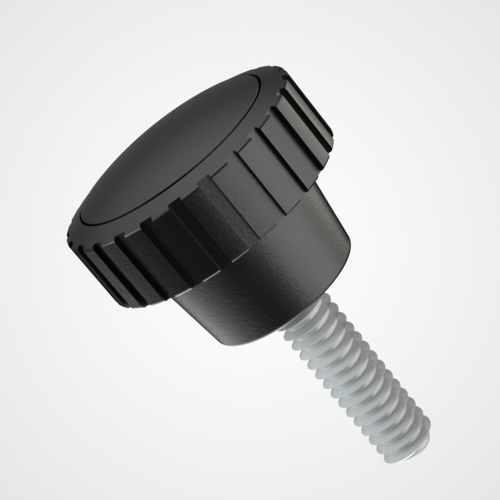

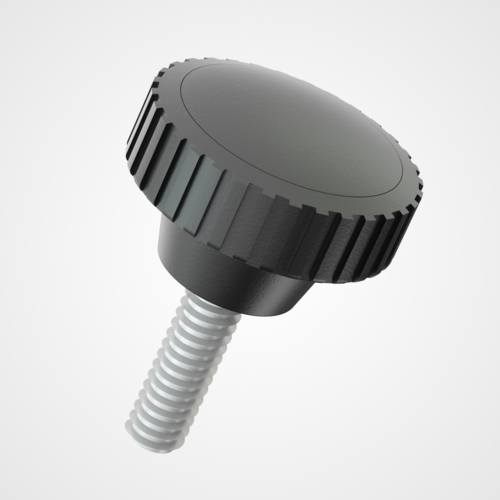

Ribbed & knurled knob (male)

Description

This range of round knobs has vertical ribbing around the outside face as an aid to hand use, providing a good gripping surface. There are two diameters, 21mm for CO210 and 27mm for CO270, in thread sizes M4 to M8 depending on the model chosen.

Advantages

The combination of a Nylon head and the strength of a steel thread makes this knob Ideal for smaller components or applications that require frequent manual fastening.

Qualities

The heads are manufactured in black Polyamide which is resistant to grease and oils, is hard wearing, and forms a visually pleasing fastener.

usage

Use for clamping and locking applications where frequent use is required.

Filter
  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 10,0
    • l : 8,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 12,0
    • l : 10,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 16,0
    • l : 14,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 20,0
    • l : 18,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 25,0
    • l : 23,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 30,0
    • l : 28,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 35,0
    • l : 33,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 40,0
    • l : 38,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 45,0
    • l : 43,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 50,0
    • l : 48,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M4
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 8,0
    • l : 6,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 10,0
    • l : 8,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 12,0
    • l : 10,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 16,0
    • l : 14,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 20,0
    • l : 18,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 25,0
    • l : 23,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 30,0
    • l : 28,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 35,0
    • l : 33,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 40,0
    • l : 38,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 45,0
    • l : 43,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 50,0
    • l : 48,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 60,0
    • l : 58,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 21,0
    • h : 7,5
    • H : 13,5
    • L : 8,0
    • l : 6,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 10,0
    • l : 8,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 12,0
    • l : 10,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 16,0
    • l : 14,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 20,0
    • l : 18,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 25,0
    • l : 23,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 30,0
    • l : 28,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 35,0
    • l : 33,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 40,0
    • l : 38,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 45,0
    • l : 43,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 50,0
    • l : 48,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M5
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 60,0
    • l : 58,0

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 10,0
    • l : 7,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 12,0
    • l : 9,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 16,0
    • l : 13,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 20,0
    • l : 17,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 30,0
    • l : 22,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 30,0
    • l : 27,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 35,0
    • l : 32,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 40,0
    • l : 37,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 45,0
    • l : 42,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 50,0
    • l : 47,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 60,0
    • l : 57,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M6
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 70,0
    • l : 67,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 10,0
    • l : 7,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 12,0
    • l : 9,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 16,0
    • l : 13,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 20,0
    • l : 17,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 25,0
    • l : 22,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 30,0
    • l : 27,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 35,0
    • l : 32,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 40,0
    • l : 37,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 45,0
    • l : 42,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 50,0
    • l : 47,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 60,0
    • l : 57,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 70,0
    • l : 67,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

  • Dimensions

    • Material : 100
    • Secondary material : 100
    • Color : 102
    • d : M8
    • D : 27,0
    • h : 10,5
    • H : 21,0
    • L : 80,0
    • l : 77,5

    Material : Polyamide

    Secondary material : / Zinc-pl. steel

    Color : black

    Minimum sales quantity :

Need help ?

Do you need more information, personalised advice or a special request about a current order? Just get in touch with us! Our team of advisers is available Monday to Thursday, 7.30am to 4.30pm and Friday 7.30am to 1.15pm.
