Triangular plastimont

2D Plan

Description

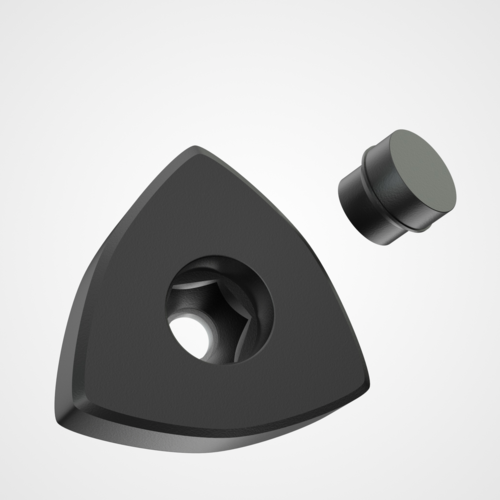

This Triangular shaped body comes in two sizes, 49mm dia turning area (CO200) suitable for m6 and m8, and 30mm (CO195) suitable for m5 and m6. It is supplied with a cap to cover the insert and provide a clean, finished appearance.

Advantages

With their ergonomic shape these fastener bodies are an attractive option when they will be visible as part of the application.

Qualities

Manufactured in black Polyamide they are resistant to grease and oils, and are hard wearing.

usage

Use for clamping and locking applications where frequent use is required.

Filter

Material

Secondary material

Color

M

d

h

S

Dimensions
- Material : 100
- Color : 102
- d : M5
- h : 2,5
- S : 8
Material : Polyamide
Color : black
Minimum sales quantity :
Dimensions
- Material : 100
- Color : 102
- d : M6
- h : 3,0
- S : 10
Material : Polyamide
Color : black
Minimum sales quantity :
Dimensions
- Material : 100
- Color : 102
- d : M6
- h : 3,0
- S : 10
Material : Polyamide
Color : black
Minimum sales quantity :
Dimensions
- Material : 100
- Color : 102
- d : M8
- h : 3,5
- S : 13
Material : Polyamide
Color : black
Minimum sales quantity :
