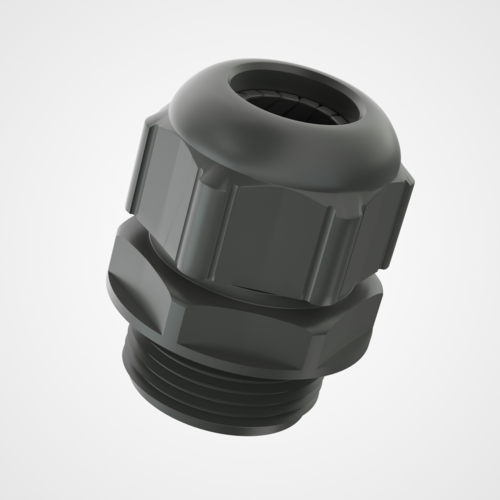

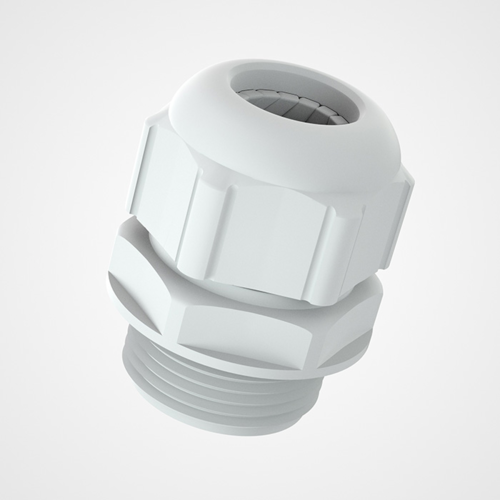

Cable gland with reducing insert
Description
This cable gland has the main function of introducing a cable or cables into a secure and waterproof box. Thanks to its large ribbed cap, manual pre-tightening is very effective and final tightening with a wrench is facilitated by the large surface of the nut. The thread at the base of the cable gland is standardized, that of the bonnet, in sawtooth, prevents loosening even in the event of strong vibrations. The mooring of the cable is carried out thanks to a very efficient diaphragm system through its sealing ring, which prevents its deterioration.
Advantages
In addition most models are equipped with an integrated anti-tearing device and a protection against torsion. We can offer you various accessories such as counter nut, plug, sealing washers and drains.
Qualities The sealing joint sees its efficiency reinforced on tightening, which allows it to reach an IP 68 protection index - up to 5 bars. Large clamping range allows standardization while maintaining the seal.
usage
Universal, they are used in industry and more particularly in the electricity sector. They can be used on all types of cables: power, controls, instrumentation, data and telecommunications. Illustrations are not contractual.
