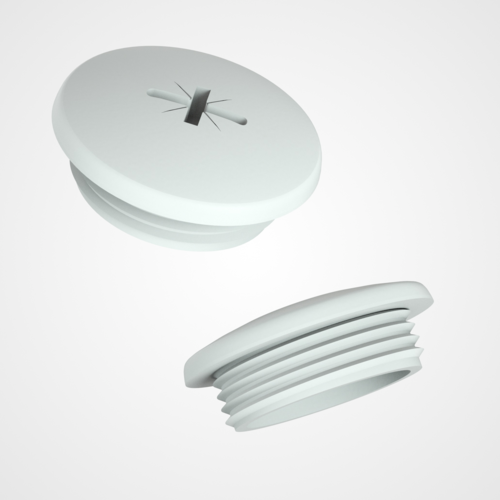

Slotted plug

2D Plan

Description

These are specific plugs for cable glands. They are primarily used to seal the cable glands to secure their locations when not in use. These plugs are specific for cable glands. They are delivered without an O-ring.

Advantages

They are intended for metric threads. This shutter is very easy to install and remove by screwing or unscrewing it on the cable gland.

Qualities

They are available in gray RAL 7035 and black RAL 9005. Thanks to this, you maintain a complete seal.

usage

They can be used in all sectors of activity but are mainly popular in the electrical equipment sector.

Filter

Color

Material

M

d

D

h

L

l

Dimensions
- d : M12
- D : 17,0
- h : 3,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M12
- D : 17,0
- h : 3,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M16
- D : 22,0
- h : 4,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M16
- D : 22,0
- h : 4,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M20
- D : 25,0
- h : 4,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M20
- D : 25,0
- h : 4,0
- l : 6,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M25
- D : 31,0
- h : 4,5
- l : 7,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M25
- D : 31,0
- h : 4,5
- l : 7,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M32
- D : 37,0
- h : 4,5
- l : 8,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M32
- D : 37,0
- h : 4,5
- l : 8,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M40
- D : 46,0
- h : 3,5
- l : 9,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M40
- D : 46,0
- h : 3,5
- l : 9,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M50
- D : 60,0
- h : 5,0
- l : 10,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M50
- D : 60,0
- h : 5,0
- l : 10,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
Dimensions
- d : M63
- D : 75,0
- h : 6,0
- l : 12,0
- Pitch : 1,5
Material : Polyamid
Color : black RAL 9005
Minimum sales quantity :
Dimensions
- d : M63
- D : 75,0
- h : 6,0
- l : 12,0
- Pitch : 1,5
Material : Polyamid
Color : grey RAL 7035
Minimum sales quantity :
