6 lobe lockingwashers

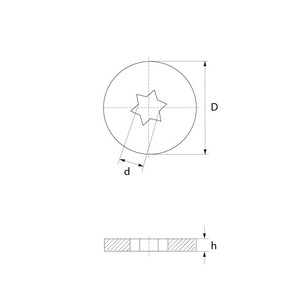

2D Plan

Description

This 6-lobe washer is a washer from the safety washer family. It owes its usefulness to its star-shaped hole, the lobes of which sit in the thread holding your assembly together. It is available from us as standard in natural nylon; but can also be offered in other materials according to your needs.

Advantages

Its six-lobe shape make it self-locking and anti loss.

Qualities

This washer is "Torx" shape.

usage

Use as an aid to assembly among other applications.

Filter

Color

Material

Secondary material

M

d

D

h

Dimensions
- M : 4
- d : 3,1
- D : 12,0
- h : 0,3
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- M : 4
- d : 3,1
- D : 12,0
- h : 0,5
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- M : 6
- d : 4,8
- D : 15,0
- h : 0,5
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- M : 6
- d : 4,8
- D : 15,0
- h : 0,8
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- M : 8
- d : 6,8
- D : 15,0
- h : 0,5
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- M : 8
- d : 6,8
- D : 15,0
- h : 0,8
Material : Polyamide
Color : natural
Minimum sales quantity :
