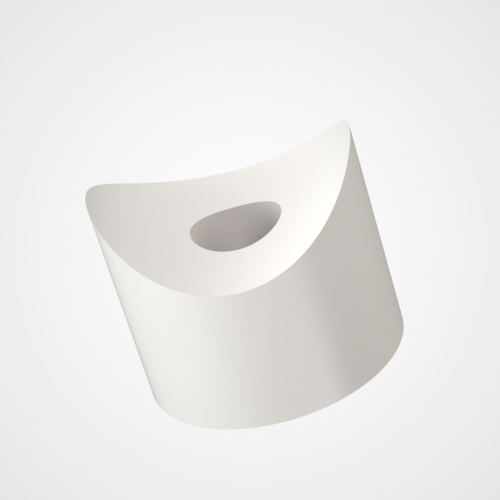

Saddle Washer/Spacer for Tubes and Round Profiles Ø 12-29 mm Nylon

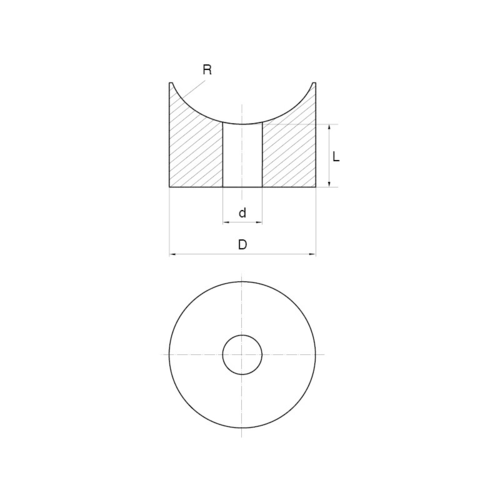

2D Plan

Description

Saddle washers for pipes Ø 12-29 mm ✓ Nylon natural ✓ Height 3-30 mm ✓ Inside Ø 5.3-8.4 mm ✓ Outside Ø 12.5-25.0 mm ▷ Request a quote now!

Advantages

Designed mainly for use with tubing, they can also be suitable for pipe work applications. They provide support between a tube and flat surface and if used back to back, between tube and tube.

Qualities

Brings you all the advantages of Polyamide material, light, clean, hard waring and more

usage

Any application where tubing is used, especially alongside other materials and components

Filter

Material

Color

Metric Thread Sizes and Compatible Saddle Washers / Spacers

The inside diameters of our saddles washers / spacers are largely based on the standard clearance hole diameters specified in ISO 273. They are therefore suitable for the following metric screws and thread sizes:

Inner diameter d	Compatible thread
4.8 to 5.3 mm	M4.5
5.3 to 5.8 mm	M5
6.4 to 7.0 mm	M6
8.4 to 10.0 mm	M8

Please take advantage of the option to order samples to check the fit with the screws used in advance.
