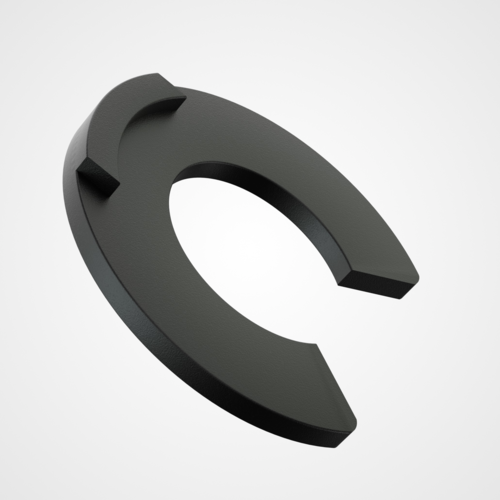

STB retaining rings

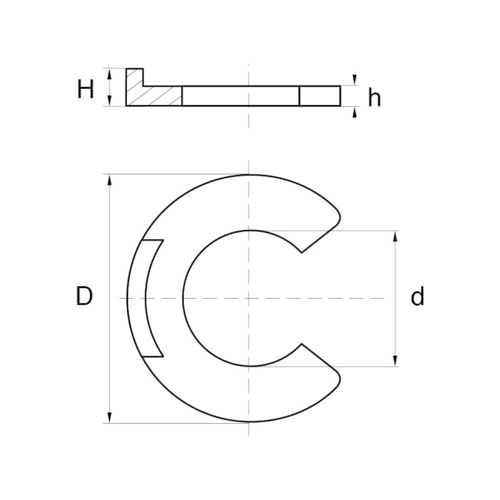

2D Plan

Description

These lipped retaining rings are designed to lock grooved shafts and axles into position. The lip is a useful aid to removal. Manufactured in Polyacetal (POM) for corrosion resistance and resistance to cleaning fluids.

Advantages

These POM retaining rings have a low coefficient of friction and are strong, rigid and tough

Qualities

Easy to fit and remove

usage

For use throughout industry where ever shafts and axles are used.

Filter

Color

Material

Secondary material

M

d

D

h

H

d1

d2

Dimensions
- Color : 102
- Material : 112
- d : 12,0
- D : 23,0
- h : 1,6
- H : 1,7
- d1 : 13-18
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 2,3
- D : 6,0
- h : 1,0
- H : 1,05
- d1 : 3-4
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 3,2
- D : 7,0
- h : 1,0
- H : 1,4
- d1 : 4-5
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 4,0
- D : 9,0
- h : 1,1
- H : 1,15
- d1 : 5-7
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 5,0
- D : 11,0
- h : 1,1
- H : 1,6
- d1 : 6-8
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 7,0
- D : 14,0
- h : 1,3
- H : 1,8
- d1 : 8-11
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 112
- d : 9,0
- D : 18,5
- h : 1,4
- H : 2,1
- d1 : 10-14
Material : Polyacetal (POM)
Color : black
Minimum sales quantity :
