Retaining Spacer, Anti-Loss Plastic Spacer With Self-Locking Lip

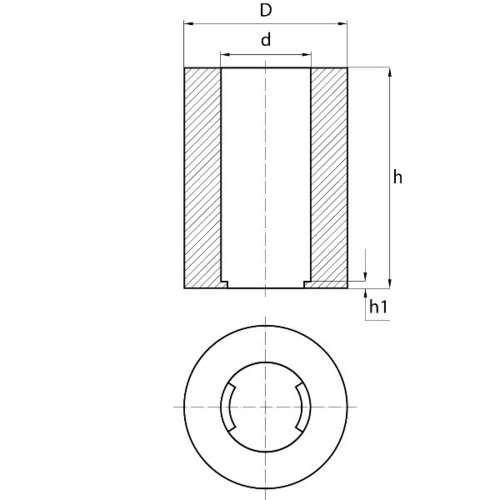

2D Plan

Description

This retaining / anti-loss spacer, is a spacer with two retaining lips within the inside diameter, which are captured by the screw thread holding the screw and spacer in position. This provides the anti-loss facility espcially useful in pre-assembly of the fastener with a component.

Advantages

Ease of pre-assembly. Prevents loss of loose screws and spacer befor tightening is required.

Qualities

Ideal where a spacer is required with components prior to final assembly.

usage

Use in applications where loss of loose screw and spacer is an issue. (Transportation of untightened sub assemblies for example)

Filter

Color

Material

Metric Thread Sizes and Compatible Retaining Spacers

The inside diameters of our retaining spacers are largely based on the standard clearance hole diameters specified in ISO 273. They are therefore suitable for the following metric screws and thread sizes:

Inner diameter d	Compatible thread
3.2 to 3.6 mm	M3
3.7 to 4.2 mm	M3.5
4.3 to 4.8 mm	M4
4.8 to 5.3 mm	M4.5

Inner diameter d	Compatible thread
5.3 to 5.8 mm	M5
6.4 to 7.0 mm	M6
8.4 to 10.0 mm	M8
10.5 to 12.0 mm	M10

Please take advantage of the option to order samples to check the fit with the screws used in advance.
