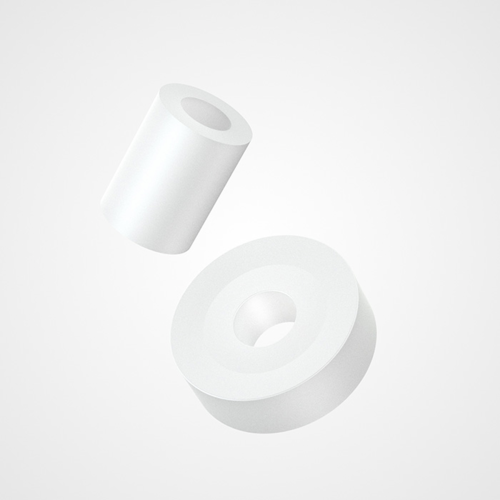

Round Plastic Spacers - Nylon, PE, POM, PS, PTFE, PA-GF

2D Plan

Description

Plastic spacers ✓ Height 2-50 mm ✓ Inside Ø 1.5-33 mm ✓ Outside Ø 4-40 mm ✓ Nylon, PE, POM, PTFE, PA-GF etc ▷ Request a quote now!

Advantages

Plastic offers numerous advantages in terms of mechanical properties, resistance to chemical influences, and temperature stability. Nylon has high strength, toughness, and wear resistance. HDPE offers excellent resistance to many chemicals, making it particularly suitable for use in aggressive environments. POM is known for its excellent mechanical properties and low moisture absorption. PS is a lightweight plastic for less demanding applications. PTFE is valued for its high-temperature resistance and low friction. A benefit of glass-fiber reinforced nylon is its increased strength and stiffness, making it suitable for applications where high loads are applied to the spacer.

Qualities

Plastic spacers are insulating, noise-dampening, and vibration-dampening. They are available in a variety of inner diameters, ranging from 2.1 to 33 mm, allowing for adaptation to different applications.

usage

Spacers made from these materials offer a wide range of advantages. They are lightweight, corrosion-resistant, and often temperature-resistant. The plastics used are generally electrically insulating, making them suitable for electronic applications. Additionally, they provide a cost-effective solution without the need for heavier and more expensive metal components. The high precision and ease of handling make them a preferred choice in many mechanical and electronic constructions.

Filter

Color

Material

Metric Thread Sizes and Compatible Round Unthreaded Plastic Spacers

The inside diameters of these round unthreaded plastic spacers are largely based on the standard clearance hole diameters specified in ISO 273. They are therefore suitable for the following metric screws and thread sizes:

Inner diameter d	Compatible thread
1.3 to 1.5 mm	M1.2
1.5 to 1.8 mm	M1.4
1.7 to 2.0 mm	M1.6
2.0 to 2.2 mm	M1.8
2.2 to 2.6 mm	M2
2.7 to 3.1 mm	M2.5
3.2 to 3.6 mm	M3
3.7 to 4.2 mm	M3.5

Inner diameter d	Compatible thread
4.3 to 4.8 mm	M4
4.8 to 5.3 mm	M4.5
5.3 to 5.8 mm	M5
6.4 to 7.0 mm	M6
8.4 to 10.0 mm	M8
10.5 to 12.0 mm	M10
13.0 to 14.5 mm	M12
15.0 to 16.5 mm	M14

Inner diameter d	Compatible thread
17.0 to 18.5 mm	M16
19.0 to 21.0 mm	M18
21.0 to 24.0 mm	M20
23.0 to 26.0 mm	M22
25.0 to 28.0 mm	M24
28.0 to 32.0 mm	M27
31.0 to 35.0 mm	M30

Please take advantage of the option to order samples to check the fit with the screws used in advance.
