Brake washers

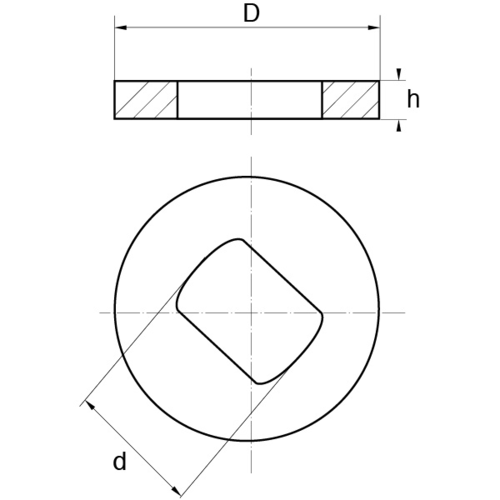

2D Plan

Description

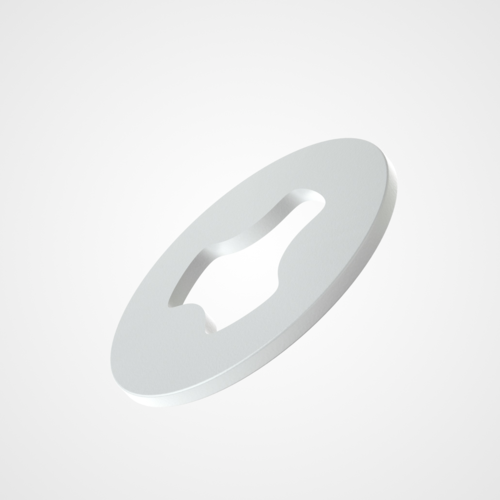

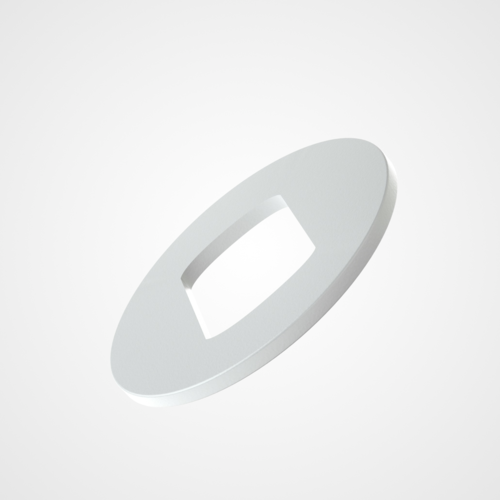

An alternative design of retaining / anti-loss washer, the flats on the internal dimension locate on to a screw thread holding the screw in place with your assembly preventing loss. RF4A-1 and RF4A: the inner contour is a little different from the drawing or the picture.

Advantages

Brake washers make it easy to pre-assemble a screw and parts prior to fastening. They are easily fitted onto the screw and retained there preventing loss.

Qualities

They are light and robust.

usage

An alternative for use in pre production assembly in all industries.

Filter

Color

Material

Secondary material

M

d

D

h

Dimensions
- Color : 100
- Material : 100
- M : 4
- d : 3,4
- D : 10,8
- h : 0,5
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- Color : 100
- Material : 100
- M : 4
- d : 3,4
- D : 10,0
- h : 0,5
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- Color : 100
- Material : 100
- M : 5
- d : 5,1
- D : 11,5
- h : 0,8
Material : Polyamide
Color : natural
Minimum sales quantity :
Dimensions
- Color : 100
- Material : 100
- M : 6
- d : 6,4
- D : 12,5
- h : 0,6
Material : Polyamide
Color : natural
Minimum sales quantity :
