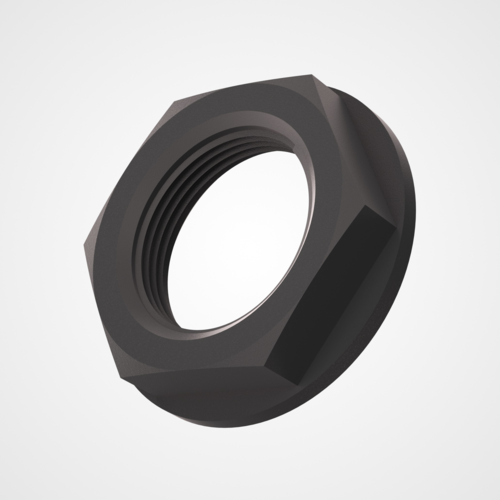

Hex flat washer faced nuts

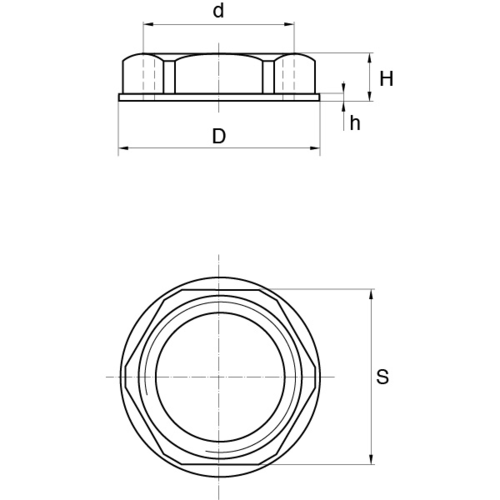

2D Plan

Description

Also known as lock nuts or jam nuts, these hex Flat Washerfaced nuts are often used together with cable glands and other electrical fittings, especially light fittings. They are typically 1/3 to 1/2 the thickness of full size nuts, with the washer section providing a larger load bearing surface.

Advantages

Light weight and non corrosive with good mechanical properties.

Qualities

Manufactured in Polyamide with 25% glass fibre reinforcing for added strength, thes nuts are hard wearing and strong.

usage

Wherever electrical fittings need securing in all industries.

Filter

Color

Material

M

d

D

h

H

S

Pitch

Dimensions
- Color : 102
- Material : 117
- d : M12
- D : 18,0
- h : 1,0
- H : 4,0
- S : 15
- Pitch : 1,0
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : M14
- D : 20,0
- h : 1,0
- H : 4,0
- S : 17
- Pitch : 1,0
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : M15
- D : 20,0
- h : 1,0
- H : 4,0
- S : 17
- Pitch : 1,0
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : M18
- D : 25,0
- h : 1,0
- H : 6,0
- S : 22
- Pitch : 1,5
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : M27
- D : 34,5
- h : 1,0
- H : 6,0
- S : 30
- Pitch : 1,5
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : M27
- D : 34,5
- h : 1,3
- H : 5,6
- S : 30
- Pitch : 1,0
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 117
- d : R3/8
- D : 30,2
- h : 2,0
- H : 7,0
- S : 24
Material : Polyamide +25% Glass filled
Color : black
Minimum sales quantity :
Dimensions
- Color : 102
- Material : 118
- d : R3/8
- D : 30,2
- h : 2,0
- H : 7,0
- S : 24
Material : Polyamide +30% Glass filled
Color : black
Minimum sales quantity :
